Aquatech Enterprises About Us Contacts Products Programmable Water Falls

Aquatech offer a full range of Conventional & LED RGB high intensity submersible lighting complete with DC power supplies & DMX controllers.

Please see descriptions below & contact us for full data sheet.


Description :


Aqua-LNR-1 series is a high intensity full LED RGB 3 in 1 light available with on board DMX addressing or wireless, made in high polished superior grade brass cast & machined finish, together with toughened shatter proof (LEXAN ) glass.

CE approved for conducted & radiated emissions /susceptibility

The light is presented with European standard corrosion resistant underwater cable.



specification:


Submersion rating                                   IP68

Input voltage                                           24 OR 12 volts DC

Power/Luminance                                   30 watts maximum

LED                                                         9 X 3.3 W CREE LED

Photometric                                             15,30,45 degree light angle ( optional )

Cable length                                            2 meter as  standard ( can be extended on request )

                                                                4 core cable for DC input & DMX addressing

DMX addressing via on board switches

Anti Surge protection

full RGB colour mixing with DMX controller comes with stand as standard


Description:


Aqua-FT9-NC series is a high intensity full LED RGB 3 in 1 light, the fixture is very stylish and made in high polished superior grade brass cast & machined finish material, together with toughened shatter proof glass (LEXAN ).

The light shall enhance the attraction of your water feature project whether indoor or outdoor.

It is presented with a 35 mm centre hole feature for fountain nozzle/jet attachment.

CE approved for conducted & radiated emissions /susceptibility.

The light is presented with European standard corrosion resistant underwater cable.


specification:


Submersion rating                                   IP68

Input voltage                                           12 OR 24 volts DC

Power/Luminance                                   30 watts maximum

LED                                                         9 X 3.3 W CREE LED

Photometric                                             15,30,45 degree light angle ( optional )

Cable length                                            2 meter as  standard ( can be extended on request )

                                                                4 core cable for DC input & DMX addressing


DMX addressing via on board switches

Anti Surge protection

full RGB colour mixing with DMX controller

Fountain nozzle adaptor available ( optional )

Stand available up to 40 cm height  ( optional, please see picture above)

Also available in 316 marine grade stainless steel material


Aqua-FT9-NC series are available in slab hanger version ( see pictures )


Description:


Aqua-UW9-NC series is a high intensity full LED RGB 3 in 1 light, the light fixture is  attractive and presentable for indoor or outdoor applications, made in high polished superior grade brass cast & machined finish, together with toughened shatter proof glass to European specifications.

CE approved for conducted & radiated emissions /susceptibility

The light is also presented with European standard corrosion resistant underwater cable.


specification:


Submersion rating                                   IP68

Input voltage                                           12 OR 24 volts DC

Power/Luminance                                    30 watts maximum

LED                                                          9 X 3.3 W CREE LED

Photometric                                              15,30,45 degree light angle ( optional )

Cable length                                             2 meter as  standard ( can be extended on request )

                                                                 4 core cable for DC input & DMX addressing

DMX addressing via on board switches

Anti Surge protection

full RGB colour mixing with DMX controller

Stand available up to 40 cm height ( optional, please see picture above)

Also available in 316 marine grade stainless steel material



Aqua-FT9-NC series are available in slab hanger version for dry deck applications in optional SS316 or brass.

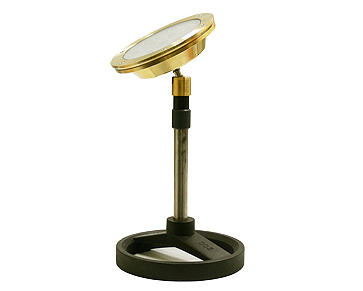

                   Aqua-UW9-NC series complete with stand

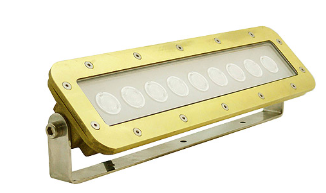

Aqua-LNR-1 linear light series

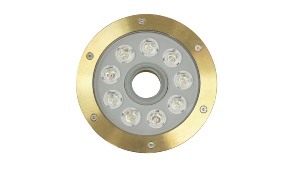

Aqua-FT9-NC series,available in SS 316

Aqua-501-27W in SS 316

Description:


Aqua-501-27W  series is a high intensity full LED RGB 3 in 1 light, the light fixture is  attractive and presentable for indoor or outdoor applications, made in high polished stainless steel finish, together with toughened shatter proof glass with 1.5” BSP centre hole for fountain nozzle connection.


specification:


Submersion rating                                   IP68

Input voltage                                           24 volts DC

Power/Luminance                                    27 watts maximum

LED                                                          9 X 3 W CREE LED

Photometric                                              15,30,45 degree light angle ( optional )

Cable length                                             3 meter as  standard ( can be extended on request )

                                                                 4 core cable for DC input & RF light controller




—---------------------------------------------------------------------------------------------------------------

—--------------------------------------------------------------------------------------------------------------

—------------------------------------------------------------------------------------------------------------

            Aqua-UW9-NC series in brass & SS 316

                                                                                                Aqua-ULFD-1- series underwater light in cast bronze chrome plated.

                                                                                                Available in 12 OR 24 volts DC 20-30 watt with conventional or 5 watt

                                                                                                 LED RGB 3 in 1 lamp with RF remote control.

                                                                                                 please contact us for full details.

—---------------------------------------------------------------------------------------------------------------
