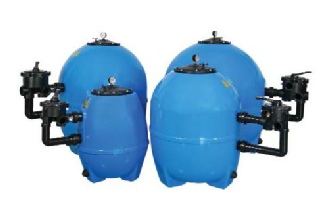

Aquatech EC Series Range Of Sand Filters

Aquatech Offers:

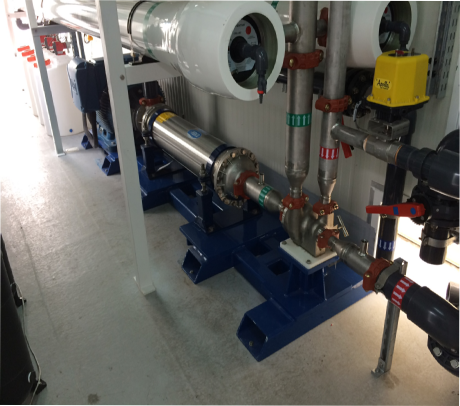

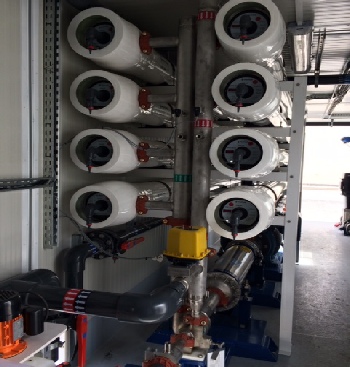

Sea water desalination, Reverse Osmosis,

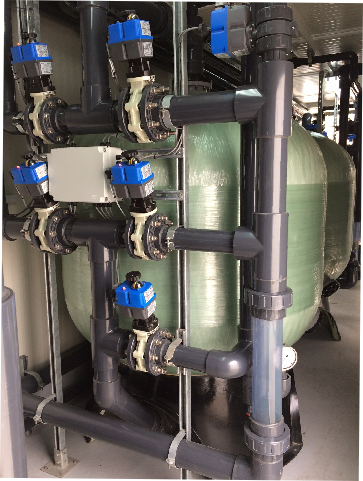

Full range Of various capacity Multimedia filtration systems,

please contact us for further details & data sheet.

Description:

Laminated silex sand filter constructed by string fibreglass mixed with polyester material featuring a steady triangle-leg-base. Air relief valve, pressure gauge and bottom cap that discharges the water and sand, are included. The collector arms and diffuser are made of un plasticsised PVC and the filter lid of black polypropylene mixed with special reinforcing glass. This is screwed on the filter by 6 stainless steel screws. The filter works with both 6 way manual or automatic selector valve that fits at the side part of the filter and controls the complete functions for the right filtration of the pool.

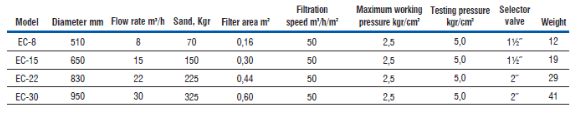

Specification:

• Mixture of fibreglass and polyester material

• Different flow rates: 8/15/22/30m3/h

• Bottom cap for water and sand discharge

• supplied with six way manual valve and connections

• maximum working pressure: 2,5kgr/cm

• maximum operating temperature: 80c

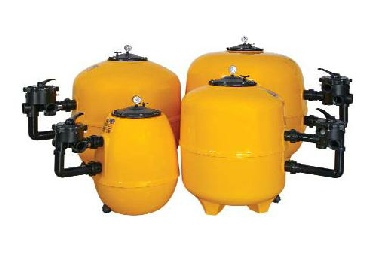

Aquatech NS Series Range Of Sand Filters

Description:

Laminated silex sand filter constructed by strong fibreglass mixed with polyester material. It comes in intense shiny yellow colour and features a steady triangle-leg-base. Air relief valve, pressure gauge and bottom cap that discharges the water and sand, are included. the collector arms and diffuser are made of unplasticised PVC and the filter lid of black polypropylene mixed with special reinforcing glass. This is screwed on the filter by six stainless steel screws. The filter works with boy 6-way manual or automatic selector valve that fits at the side part of the filter and controls the complete functions for the right operation of the pool.

Specification:

• Mixture of fibre glass and polyester material

• different flow rates: 8/16/24/ 32m3/h

• bottom cap for water and sand discharge

• supplied with six-way manual valve and connections

• maximum working pressure: 3kgr/cm2

• maximum operating temperature : 80c
